- The most compact product available on the market with its section of 8x8 mm
- High efficiency (>110 Im/W)
- ANSI compliant binning, 3 step MacAdams ellipse for each individual lot
- Excellent lumen maintenance and colour stability over time
- Extensive dimming range - fully dimmable, with external dimmer
- IP67 protection rating
- UV-resistant material
- Top light emission
- Long life and low maintenance costs
Description

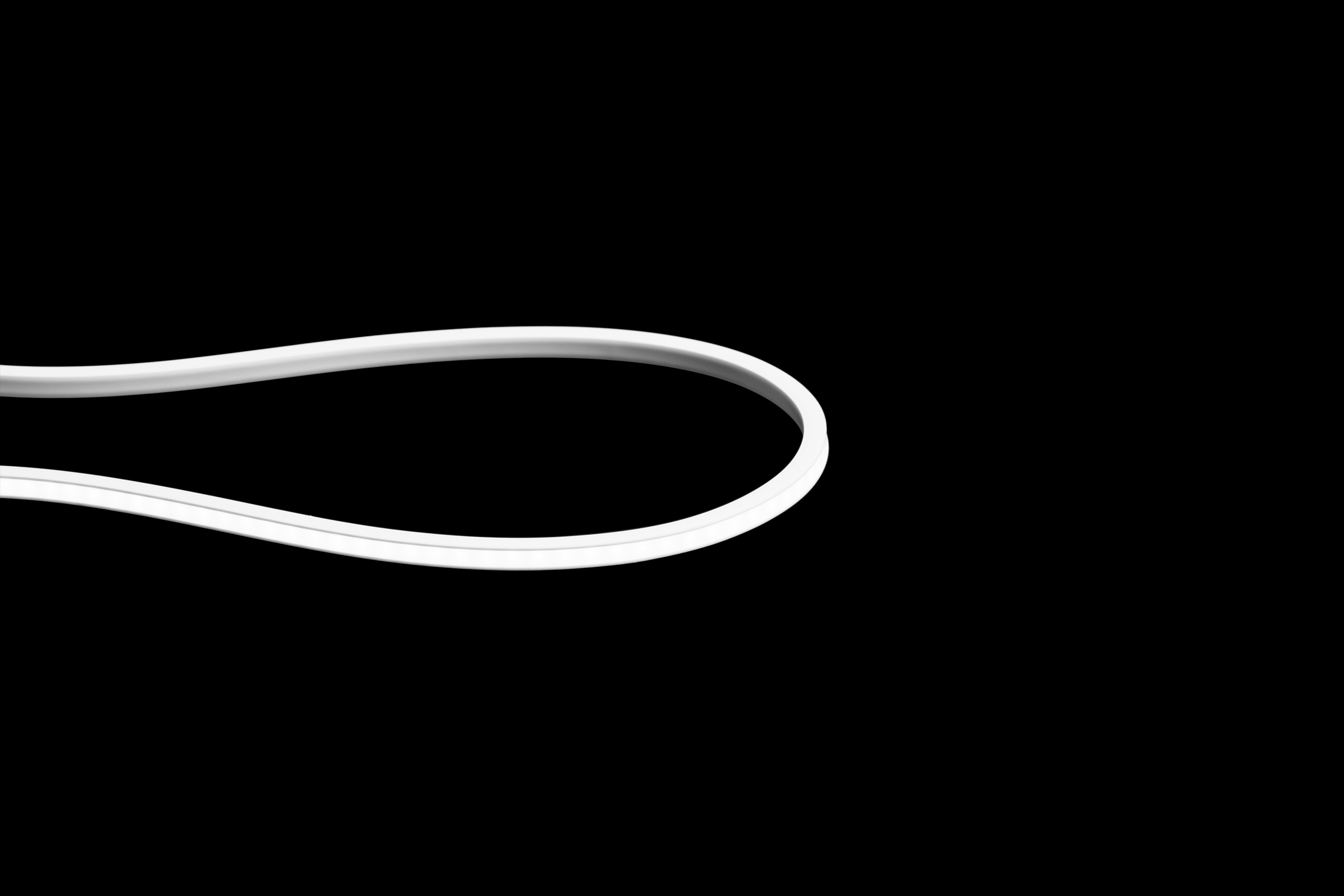

This product is available in top emission version only with respect to the curvature axis, and it is thus adaptable to any type of installation. 10/20m continuous lengths can be produced according to the luminous flux emitted, with increments of 50mm. The LED module is completely encapsulated to perform IP67 and it’s available with opal or clear finish. Materials are highly resistant against atmospheric agents and suitable for installation to high UV exposure.
Applications
The flexible modules of the Spline series are designed for the functional lighting of curved grooves in ceiling and alcoves in walls and for the accent lighting of outdoor situations with an irregular line. Thanks to an extremely flexible, but fully resistant and reliable circuit, curved or shaped profiles can be illuminated with continuity.
